Instrumentation Cables
Instrumentation Cables
Over the years, we have gained specialization in constructing an extensive assortment of instrumentation cables that can be paired individually or on an overall basis. These cables are incapacitated to increase cross talk exponentially as the near end frequency increases.
Our expertise in our ambit of operations has facilitated us in producing a standardized as well as customized assortment of screened instrumentation cables that are in compliance with IS: 5608 & IS: 5026 standards. Available in shielded / braided finishes, these cables are specific in terms of design so as to transmit signals without any external interference. These screened instrumentation cables are offered in different sizes of 25/0.5/0.75/1.0/1.5/2.5/4.0 sq. mm that conforms to BS: 5308 - I & II, IEC-189, IS: 1554 - I:88, VDE 0815.
Utilizing superior quality material, our range of high tension electrical cables are constructed by our adept team with perfection and accuracy. Offered in pairs for individual or overall instrumentation these cables are available in the thickness range of 0.5 sq mm to 25 sq mm. These cables increase the cross talk exponentially as the near end frequency increases.
Over the years, we have gained specialization in constructing an extensive assortment of instrumentation cables that can be paired individually or on an overall basis. These cables are incapacitated to increase cross talk exponentially as the near end frequency increases.
Our instrumentation cables are fabricated as per BS 5308 Part 1 Type 1 standard and are widely used for cable tray installation in intrinsically safe environment and transmission of analog or digital signals designed for process control.

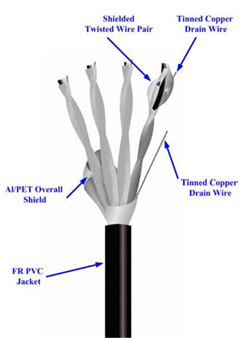

These instrumentation cables are constructed using the following MOC:
| Conductor | Stranded annealed bare copper complying with BS 5308 Part 1 |
| Insulation | PVC complying with BS 5831 Type 03 with a radial thickness pairs of 0.6 mm |
| Pairs | Two cores are twisted into pairs in nominal lays of 50 to 60 mm |
| Colour code | Black / white with successive numbers, or per color code conforming to BS 5308 Part 1 |
| Individual | Each pair is individually shielded |
| Shielding | With a polyester / aluminium (AL/PET) foil, aluminium side facing inwards; 125% coverage |
| Pair drain Wire | 0.5 mm2 tinned copper |
| Cabling | The pairs are cabled into a cable core |
| Overall | Shielded with a polyester / aluminium |
| Shielding | (AL/PET) foil, aluminium side facing inwards. 100% coverage |
| Overall drain wire | 0.5 mm2 tinned copper |
| Outer Jacket | Black PVC complying with BS 5308 Type 6 |
Screened Instrumentation Cables
Our expertise in our ambit of operations has facilitated us in producing a standardized as well as customized assortment of screened instrumentation cables that are in compliance with IS: 5608 & IS: 5026 standards. Available in shielded / braided finishes, these cables are specific in terms of design so as to transmit signals without any external interference. These screened instrumentation cables are offered in different sizes of 25/0.5/0.75/1.0/1.5/2.5/4.0 sq. mm that conforms to BS: 5308 - I & II, IEC-189, IS: 1554 - I:88, VDE 0815.
High Tension Electrical Cables
Utilizing superior quality material, our range of high tension electrical cables are constructed by our adept team with perfection and accuracy. Offered in pairs for individual or overall instrumentation these cables are available in the thickness range of 0.5 sq mm to 25 sq mm. These cables increase the cross talk exponentially as the near end frequency increases.
